COMPACT DEVICE
The Noxar Vizar is a compact thermal imaging collimator designed for rapid target detection in low-visibility conditions.
The device enables observation of thermal contrast, making it suitable for use after dark, in forests, in open terrain, and wherever conventional optics may not be sufficient – without the need for large, heavy equipment.
TOUCHSCREEN DISPLAY

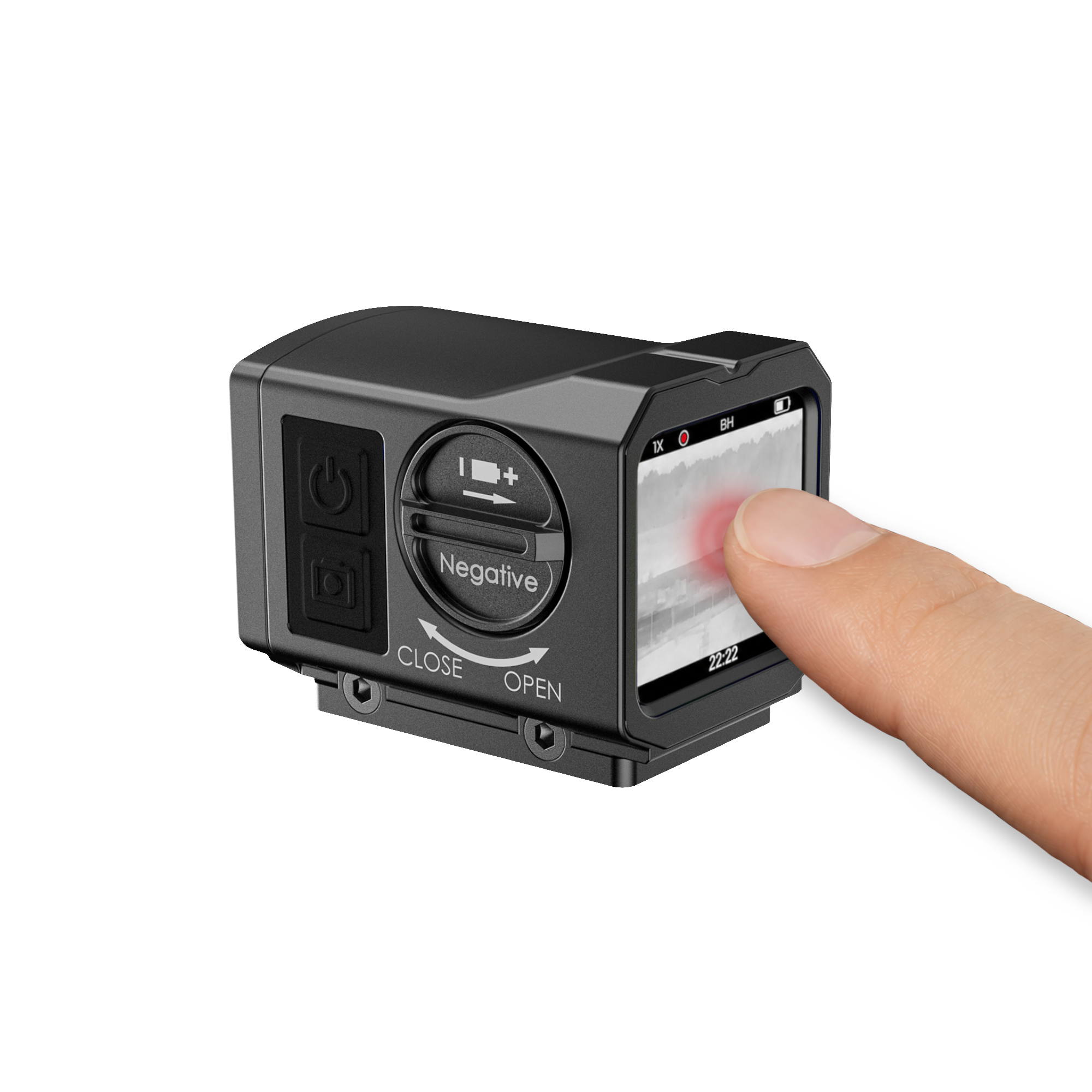

Operation of the Noxar Vizar has been simplified as much as possible thanks to the touchscreen display. The device features only a physical power button and a recording/photo capture button, while all other functions can be controlled directly on the screen.
This solution makes changing settings, selecting modes, and adjusting the view fast and intuitive. One finger is all it takes to efficiently control the device without taking your attention away from observation.
HYBRID POWER SUPPLY

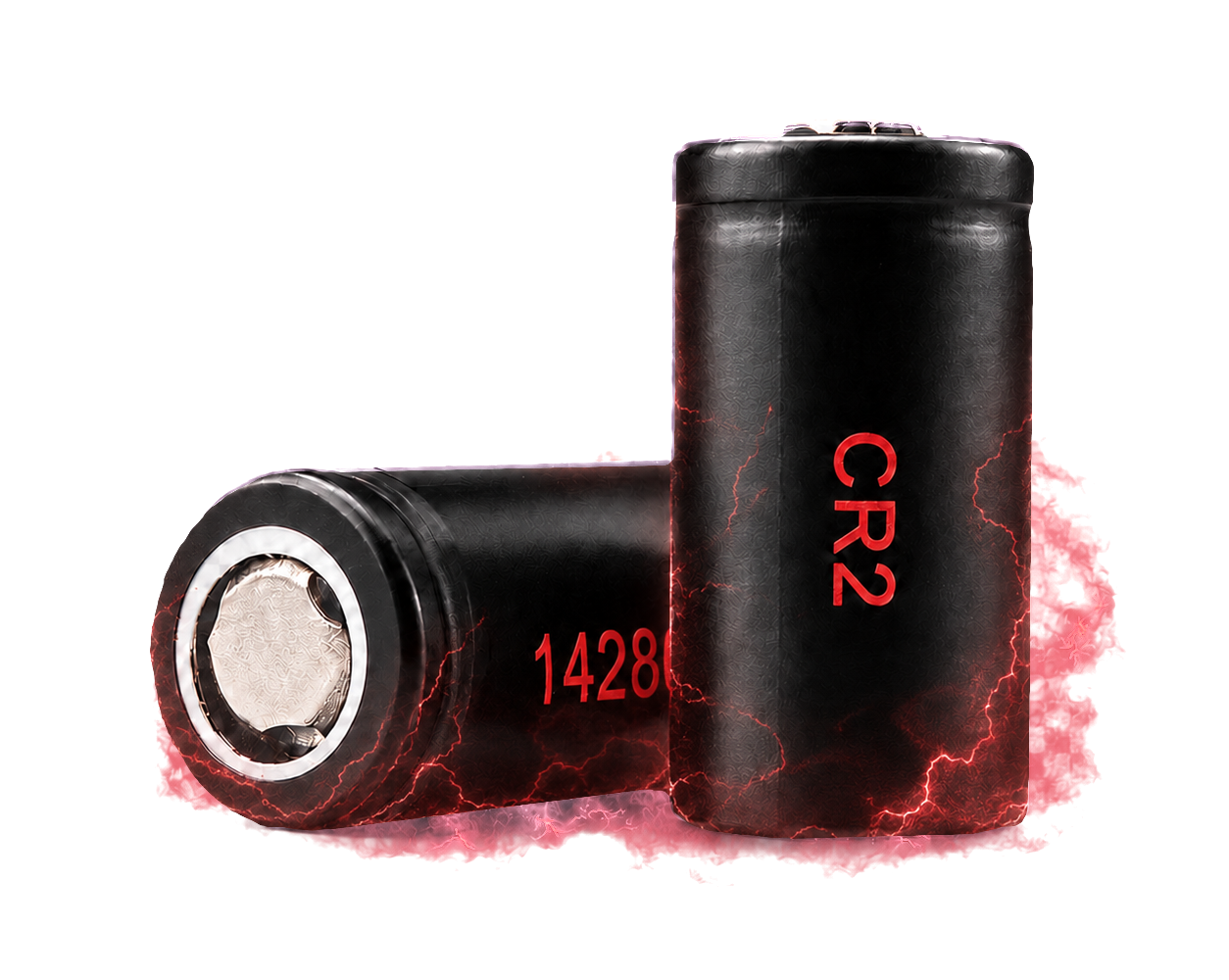

The Noxar Vizar can be powered by one 14280 3.7 V rechargeable battery – two included in the set together with a charger – or by a CR2 3.7 V battery. These cells provide up to 4 hours of continuous operation. In addition, the USB-C 5 V port enables external power supply.
OTHER FEATURES
MOUNT
included in set
MENU LANGUAGE
Polish and English
30GB MEMORY
for photos & videos
SpecIFICATION
SENSOR
Resolution:
256 x 192 px
NETD:
< 30 mK
OPTICS
Lens:
13 mm, F0.9
Magnification:
1X
Digital zoom:
1X / 2X / 3X
FOV:
13.5º x 10.1º
POWER SUPPLY
Battery:
14280 or CR2 (3.7V)
External power supply:
USB-C (5V)
Working hours:
> 4h
Operating temperatures:
-20 ~ 50 ºC
DISPLAY
Resolution:
1.6 inches, 320 x 320 px
Color mode:
WH/BH/IR/GH/RH
RETICLE
Styles:
2
Colors:
4
PHOTO / VIDEO
Built-in memory:
30 GB
Photos:
Yes
Video:
Yes
OTHERS
Dimensions:
43 x 41 x 52 mm
Weight:
112 g
